Electromechanics, Switches

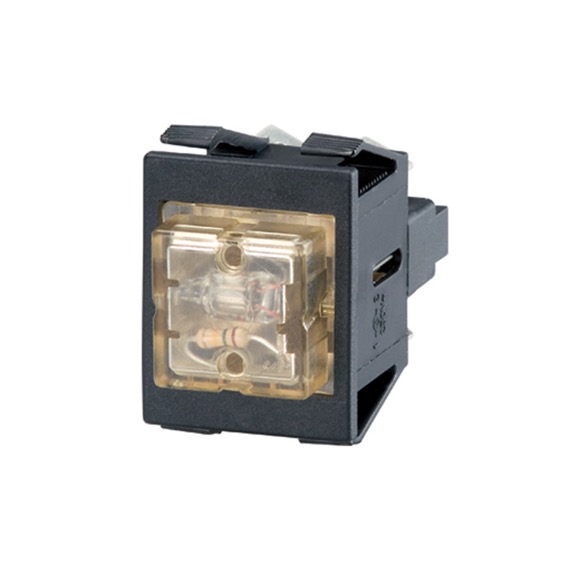

SP63 Series
Square cut out – 27X22
ENEC electrical rating up to 16A
– Wiring diagrams flexibility
– Illuminated or not
– Independent light version available
– Applications: vacuum and steam cleaners
| Model | Push-button switches |
|---|---|
| Switch type | Push button switches |
| Brand | Everel |
| Cut out shape | 27x22 mm |
| Waterproof | No |
| Electrical feature | Single pole or dual pole |
| Portata Enec fino a | 16A |
| Luminoso | Depending on the model |
| N. cicli elettromeccanici fino a | 50000 |
| Temperatura ambiente fino | 120 °C |
| Resistenza al calore e al fuoco | GWFI 850 °C, GWIT 750 °C on request |
| Distanza tra i contatti | ? 3 mm |
| Normative di riferimento | EN 61058, UL 1054 |
| Normative di riferimento | EN 61058, UL 1054 |
| Colore | Green, Orange, Other colors on request, Red |
