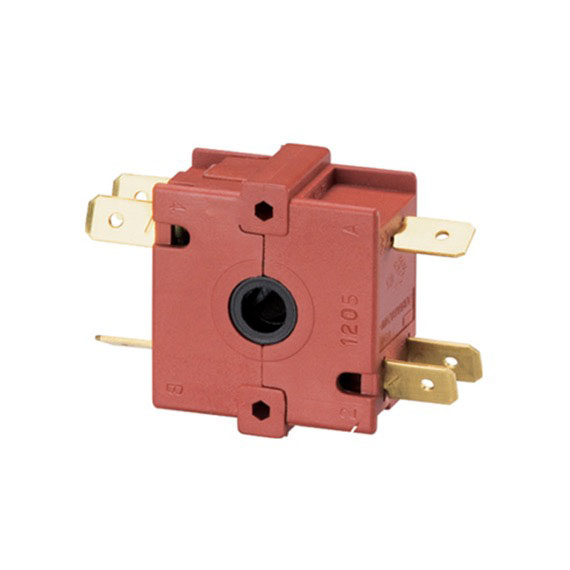

R1 Series

Electromechanics, Switches

R1 Series

Rear panel cut out – 28 mm interaxes screws
ENEC electrical rating up to 13A
– Up to 6 30° steps
– Customizing cam
– Available shafts up to 26 mm
– Applications: fan heaters, small ovens, cleaners

Switch type Rotary switches
Brand Everel
Cut out shape Rear panel, Screws interaxis 28 mm
Waterproof No
Electrical feature Single pole or dual pole
Portata Enec fino a 13 A
Luminoso No
N. cicli elettromeccanici fino a 50000
Temperatura ambiente fino 150 °C
Resistenza al calore e al fuoco GWFI 850 °C, GWIT 750 °C on request
Distanza tra i contatti ? 3 mm
Normative di riferimento EN 61058, UL 1054
Normative di riferimento EN 61058, UL 1054
 DATA SHEET
