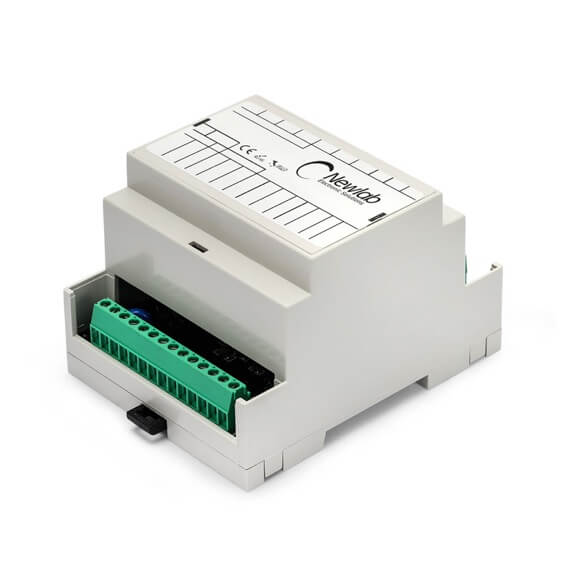

Four channel costant voltage dimmer DMX/PUSH/DALI/POT/0-10V/BLE

Dimmers, Lighting

Four channel costant voltage dimmer DMX/PUSH/DALI/POT/0-10V/BLE

  • 4 channels Dimmers with Output Voltage PWM
  • Input Range: 8-53V DC
  • Output Voltage PWM 8-53V DC with current from 0A to 8A (384W at 48V DC) for single channel
  • In single channel mode current from 0A to 32A (1536W at 48V)
  • Parallelisable output channels
  • Controllable with Android/iOS app Newlab Go with different working modes: Single Channel, RGB, RGB + White, White tunable
    • In order to set working modes you will need the L392MA00N0A01 interface sold separately

    Brand Newlab
    Number of channel 4 channels
    Input controls 0-10V Passive, 1-10V Passive, Bluetooth LE, DALI, DMX512 RDM, Insulated Push button, Linear Potentiometer 100K, Not insulated Push button
    In voltage DC From 8 to 53V
    Code L406MA02T4A01
     DATA SHEET
     USER MANUAL
