IP67 LED TOGGLE SWITCHES
Toggle switches designed to control electrical circuits by turning the power on or off with a simple lever movement. They combine switching, visual indication and reliability in a single solution for a wide range of applications, including electronic equipment, household appliances, control systems, vehicles and industrial machinery.
Instantly checking the status of a circuit helps make the operation of a device more intuitive, safe and efficient.
LED toggle switches combine switching and visual indication in a single component, allowing you to control the power supply while providing immediate visual feedback on the circuit status. A solution that eliminates the need for separate indicators, simplifies system design and helps optimise the available space.
Thanks to their versatility, LED toggle switches are used in a wide range of applications, from electronic equipment and household appliances to control systems, vehicles and industrial applications, offering an effective combination of functionality, ease of use and reliability.

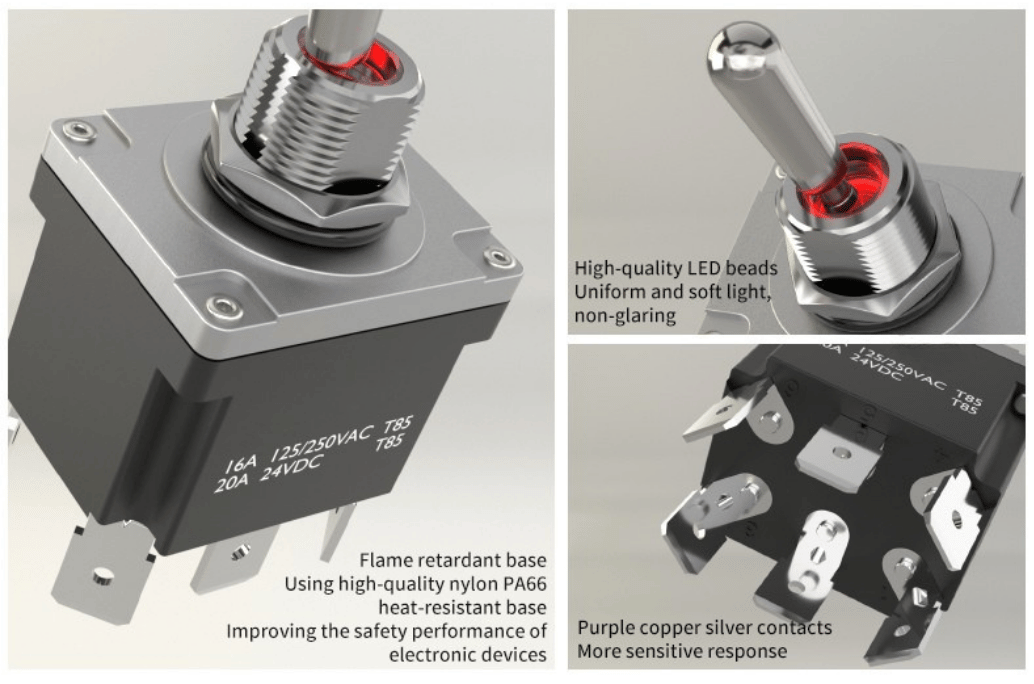

LED VISUAL INDICATOR
Built-in LED for immediate visual feedback on the circuit status
Single-colour and dual-colour LEDs allow users to quickly identify the operating status of the application. They are available for different supply voltages (for example, 12 V or 120 V). It is essential to select a switch designed for the same voltage as the circuit in which it will be used.
Features
- Single-colour or two-colour LED
- Current consumption below 15mA
- Lifetime up to 100,000 hours
IP67 PROTECTION
Reliable performance in dusty and wet environments
The sealed design with silicone gaskets and IP67 protection help protect the component from dust and moisture, ensuring reliable performance in demanding environments.
Features
- IP67 protection
- Silicone gaskets
- Designed for industrial applications
VERSATILITY
A versatile range for different control requirements

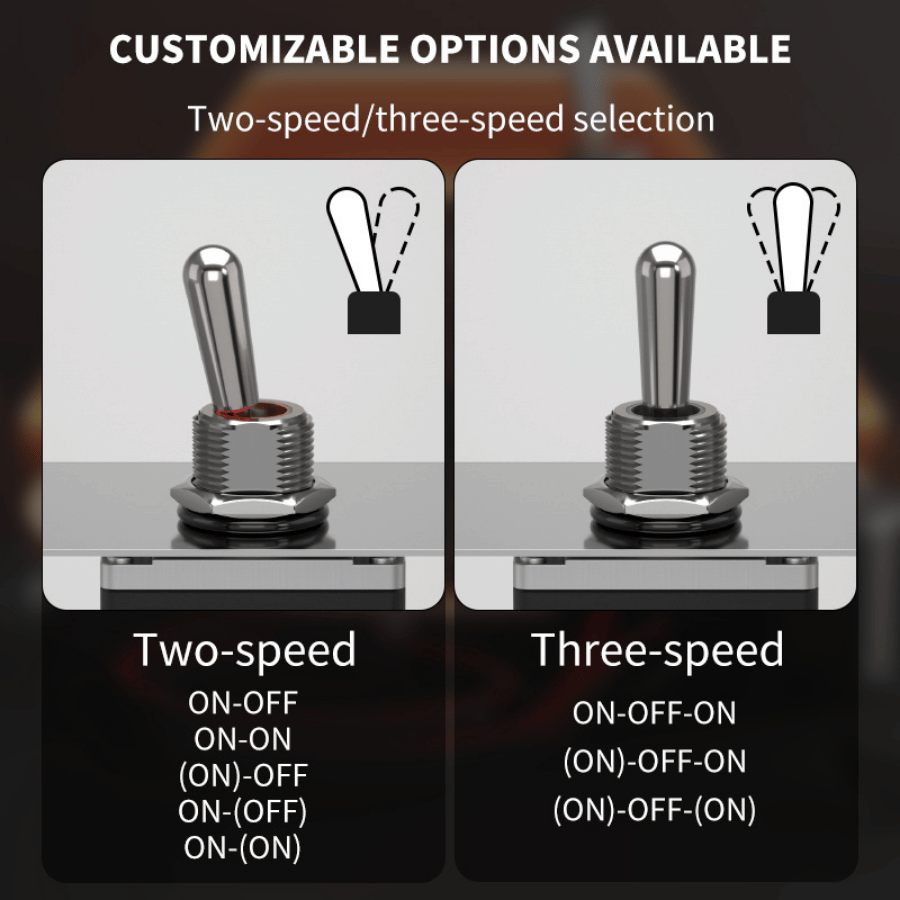

Available in 2-position and 3-position versions, these switches support different control requirements, providing greater flexibility during design and installation.
Available Configurations
- ON-OFF
- ON-ON
- ON-OFF-ON
- (ON)-OFF
- ON-(OFF)
- (ON)-ON
- (ON)-OFF-ON
- (ON)-OFF-(ON)

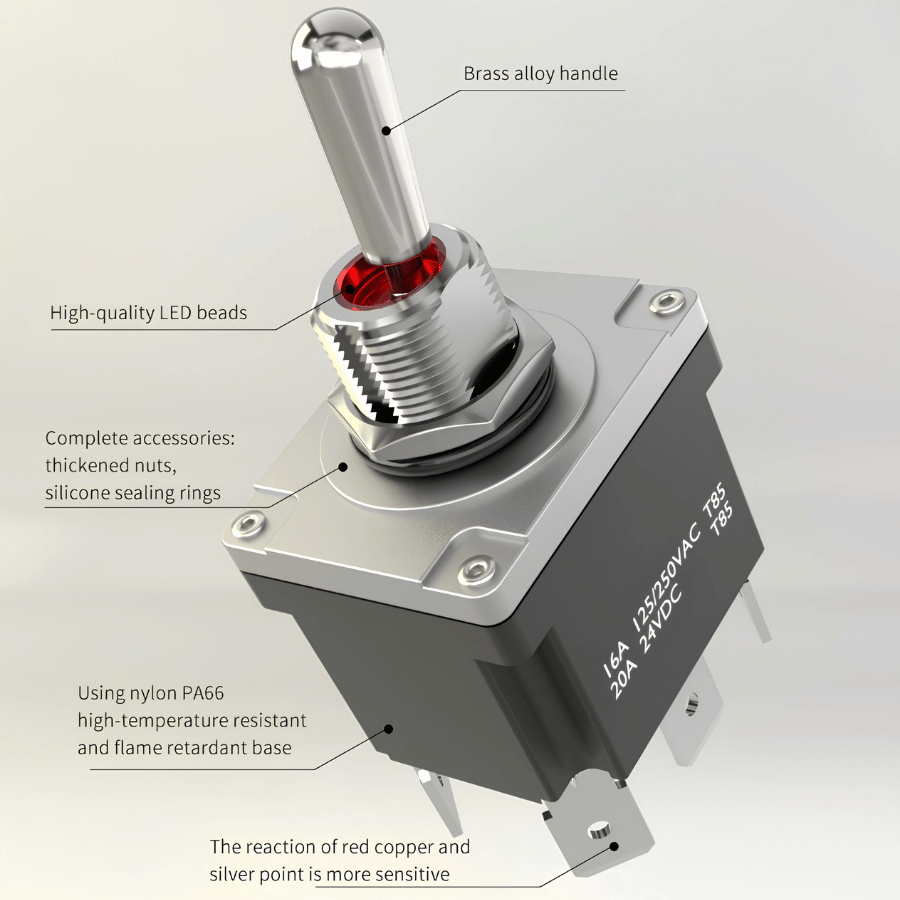

HIGH-QUALITY COMPONENTS
Quality components built to last
The use of durable materials and copper contacts with silver-plated contact points helps ensure stable switching and consistent performance over time. Every component has been selected to provide strength, reliability and a long service life, even in demanding applications.
Features
- Brass alloy lever
- Flame-retardant PA66 housing
- Silicone gaskets
- Silver-plated copper contacts
- Reinforced mounting nut
Main Technical Features
An overview of the main specifications of LED toggle switches.
Type
LED toggle switch.
LED Visual Indicator
Single-colour or two-colour LED.
LED Lifetime
Up to 100,000h.
LED Current Consumption
<15mA.
Protection Rating
IP67.
Available Positions
2 or 3 positions.
Gaskets
Silicone gaskets designed to provide enhanced protection against dust and moisture.
AC Rated Current
16A @ 125/250VAC.
DC Rated Current
20A @ 24VDC.
Lever Material
Brass alloy.
Housing Material
Flame-retardant PA66.
Contacts
Copper with silver-plated contact point.
Configurations
Available in 2-position and 3-position versions with different switching configurations, including ON-OFF, ON-ON and ON-OFF-ON. The range also includes momentary configurations and dedicated solutions for different application requirements.
