Electromechanics, Switches

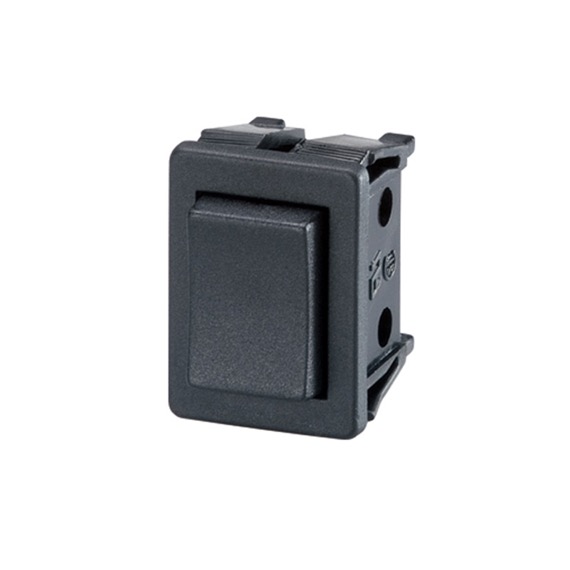

SCA Series
Square cut out – 19X13
ENEC electrical rating up to 10A
– Soft and flat push-buttons available
– 12V 20A version available
– Up to 50,000 electro-mechanical cycles
– Applications: ironing systems
| Model | Push-button switches |
|---|---|
| Switch type | Push button switches |
| Brand | Everel |
| Cut out shape | 19x13 mm |
| Waterproof | No |
| Electrical feature | Single pole |
| Portata Enec fino a | 10 A |
| Luminoso | No |
| N. cicli elettromeccanici fino a | 50000 |
| Temperatura ambiente fino | 120 °C |
| Resistenza al calore e al fuoco | GWFI 850 °C, GWIT 750 °C on request |
| Distanza tra i contatti | ≥ 3 mm |
| Normative di riferimento | EN 61058, UL 1054 |
| Normative di riferimento | EN 61058, UL 1054 |
