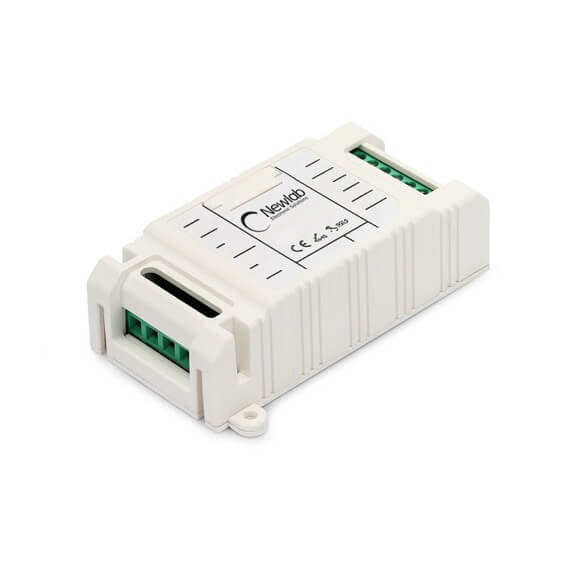

Mono channel costant current dimmer DALI/PUSH/POT/1-10V

Dimmers, Lighting

Mono channel costant current dimmer DALI/PUSH/POT/1-10V

  • Monochannel Dimmers with Output Current PWM
  • Input Range: 8-53V DC
  • Output Current PWM with current from 0.17A to 1.05A (54.6W at 52V DC)
    • In order to set the output current you will need the L392MA00N0A01 interface sold separately. Default current 0.35A
    In order to set the fade output and the logarithmic or linear output you will need the L392MA00N0A01 interface sold separately, the other working modes are automatically detected by the device. Please refer to user manual

    Brand Newlab
    Number of channel Monochannel
    Input controls 0-10V Passive, 1-10V Passive, DALI, Insulated Push button, Linear Potentiometer 100K
    In voltage DC From 8 to 53V
    Code L400MB04C1A01
     CONNECTION DIAGRAMS
     DATA SHEET
     USER MANUAL
