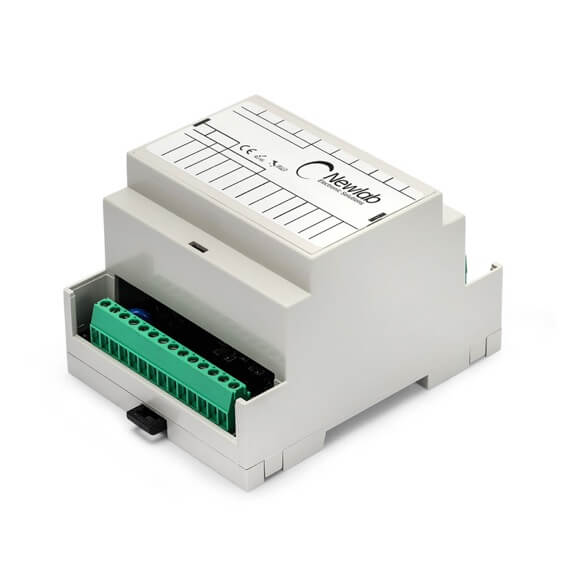

Four channel costant current dimmer DMX/PUSH/DALI/POT/0-10V/BLE

Dimmers, Lighting

Four channel costant current dimmer DMX/PUSH/DALI/POT/0-10V/BLE

  • 4 channels Dimmers with Output Current PWM
  • Input Range: 8-53V DC
  • Output Current PWM with current from 0.17A to 1.05A (54.6W at 52V DC) for single channel
  • In single channel mode current from 0.68A to 4.2A (218.4W at 52V)
  • Parallelisable output channels
  • Controllable with Android/iOS app Newlab Go with different working modes: Single Channel, RGB, RGB + White, White tunable
    • In order to set working modes and output current you will need the L392MA00N0A01 interface sold separately

    Brand Newlab
    Number of channel 4 channels
    Input controls 0-10V Passive, 1-10V Passive, Bluetooth LE, DALI, DMX512 RDM, Insulated Push button, Linear Potentiometer 100K, Not insulated Push button
    In voltage DC From 8 to 53V
    Code L405MA02C4A01
     DATA SHEET
     USER MANUAL
