Electromechanics, Switches

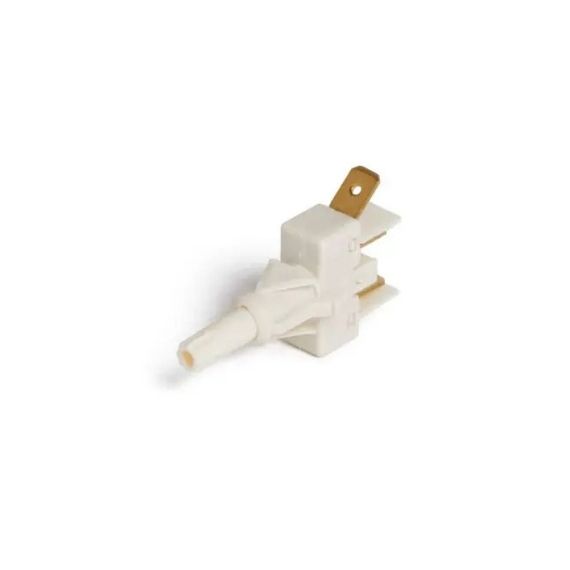

DY1 Series

The DY1 Series is a range of single-pole pushbutton switches designed for industrial and household appliance applications requiring reliability, long service life, and maximum configuration flexibility. Thanks to its wide range of accessories, flexible electrical configurations, and customizable actuator, the DY1 Series offers a versatile solution for numerous switching applications.

Main features of the DY1 Series:

• Single-pole pushbutton switch available in multiple configurations
• Wide range of accessories
• Flexible electrical circuit configurations
• Customizable actuator
• 11×15 mm snap-in panel mounting
• ENEC rated up to 16 A
• Mechanical life up to 50,000 operating cycles
• Operating ambient temperature up to 150 °C
• UL 94 V2 flammability rating
• Heat and fire resistance: GWFI 850 °C – GWIT 750 °C
• Contact gap greater than 3 mm
• µ disconnection available on selected configurations
• Available versions: single-pole changeover switch, single-pole push-changeover switch, single-pole normally open (NO) switch, single-pole normally closed (NC) switch, single-pole NO pushbutton, and single-pole NC pushbutton
