DIMMER FORREST-SPI DALI2/PUSH

Advanced control for dynamic lighting.

The FORREST-SPI DALI2/PUSH Dimmer is the ideal solution for those looking for precise and versatile light control. Thanks to compatibility with multiple protocols and inputs, you can easily manage complex lighting scenes, creating dynamic effects and synchronized animations.

Intuitive control, easy integration, high performance.

DISCOVER MORE

FORREST SPI DALI2/PUSH Control Dimmer

The DALI2-FORREST L865MA0FS1A01 dimmer is Newlab’s dimmer designed for controlling multi-input pixel-to-pixel LED strips. This dimmer is suitable for use with all home automation systems currently available on the market, featuring a DMX512 output and an ARTNET-to-SPI/DMX converter mode (512 channels), and supports input power supplies of 5/12/24/48V DC up to 15A.

AVAILABLE INPUTS

DALI2 (DT6)

PUSH

0-10V / 1-10V

PHASE-CUT

POTENTIOMETER

PRESENCE SENSOR

ARTNET MODE

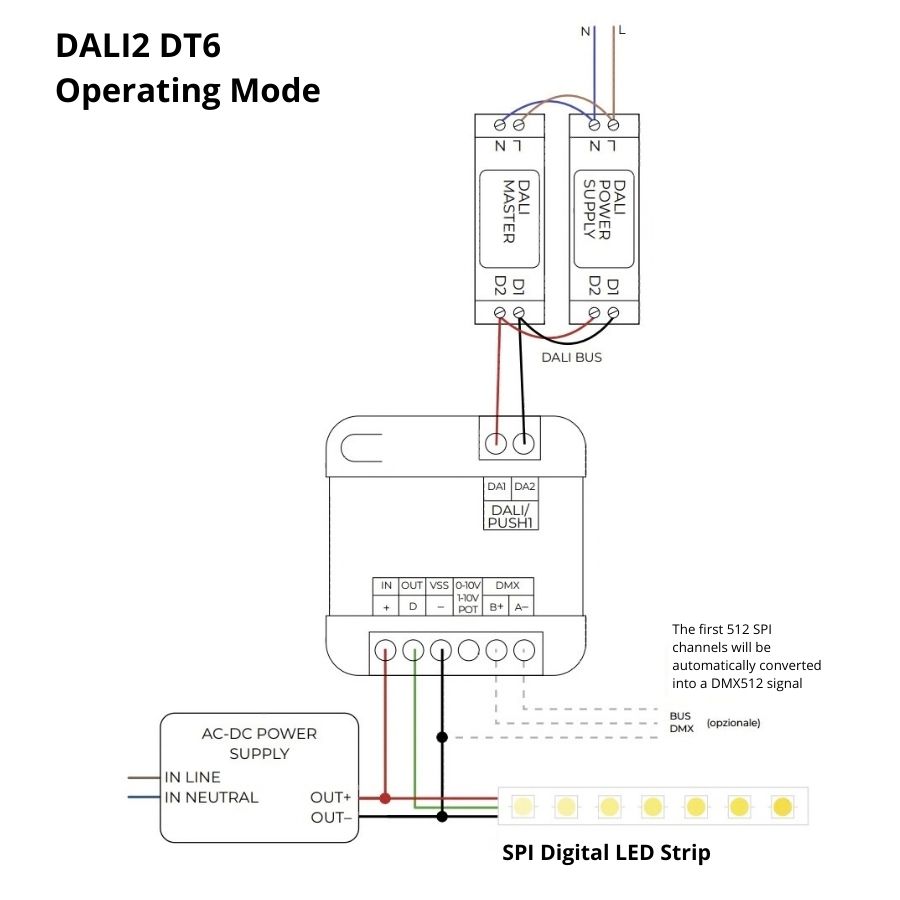

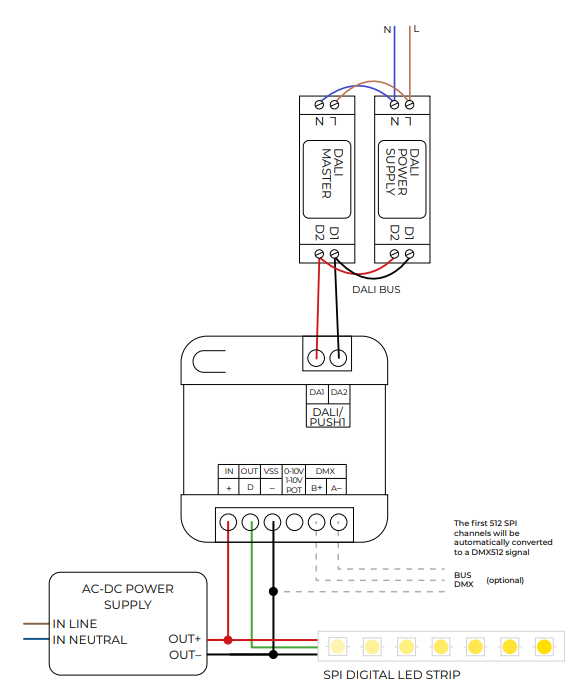

CONTROL VIA DALI2 (DT6)

Through DALI2 the dimmer allows control of:

  • show start via power ON + power OFF command
  • DIMMING

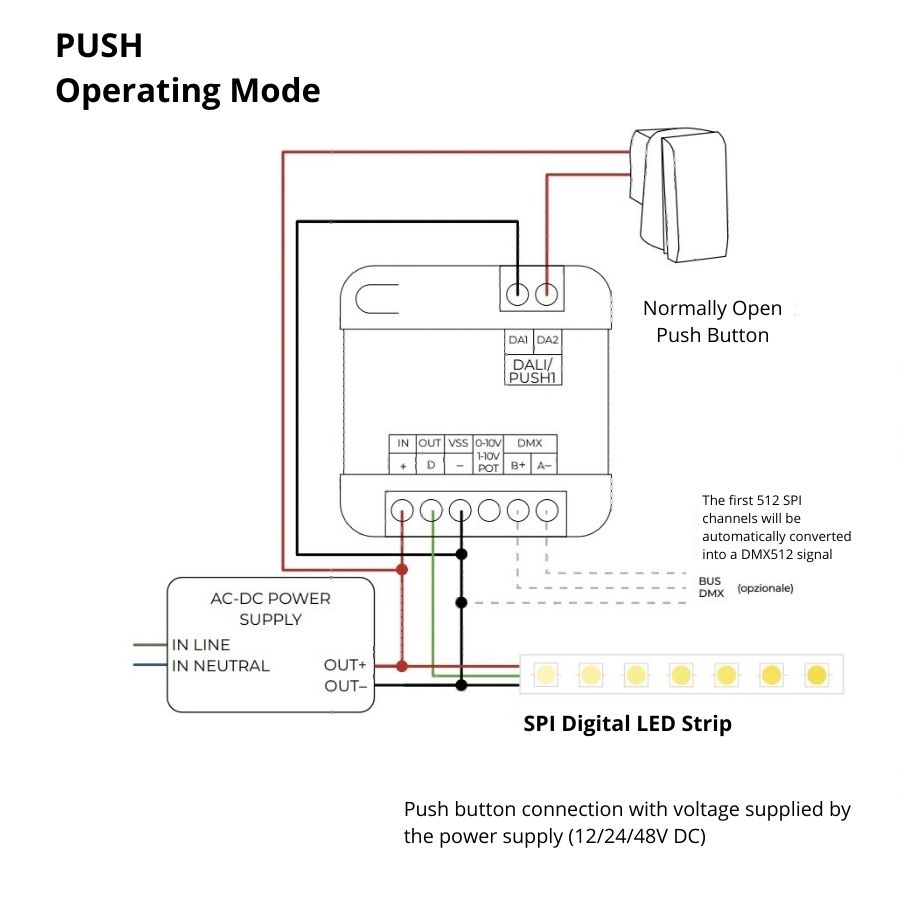

CONTROL VIA PUSH

The dimmer also features a PUSH input, which allows you to:

  • turn ON and turn OFF
  • DIM the brightness
  • CHANGE the selected lighting show

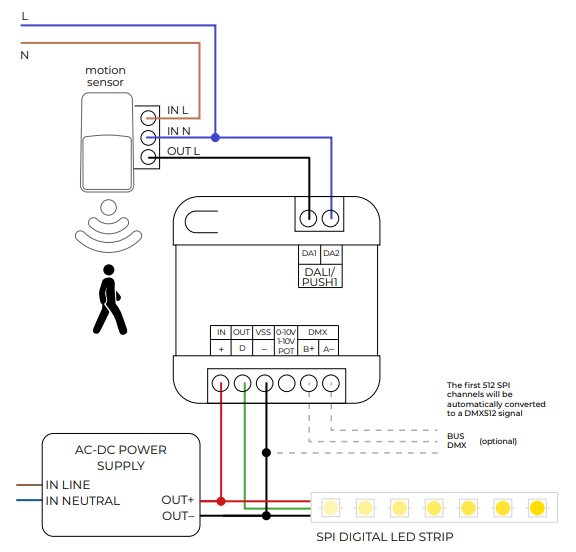

CONTROL VIA PRESENCE SENSOR

Through DALI2 the dimmer allows control of:

  • show start via power ON + power OFF command
  • DIMMING

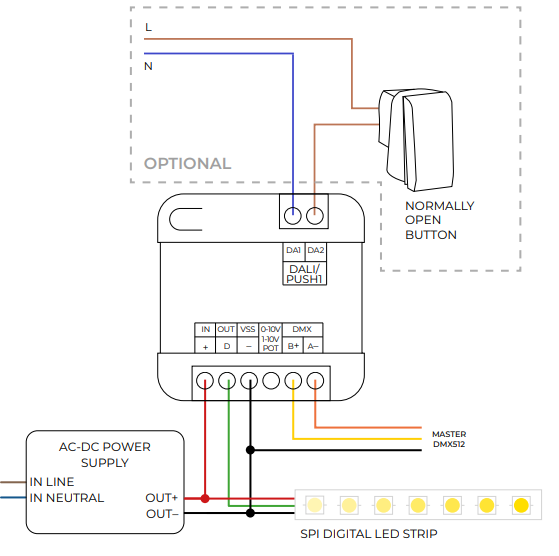

CONTROL VIA DMX TO SPI

The dimmer also features a PUSH input, which allows you to:

  • turn ON and turn OFF
  • DIM the brightness
  • CHANGE the selected lighting show

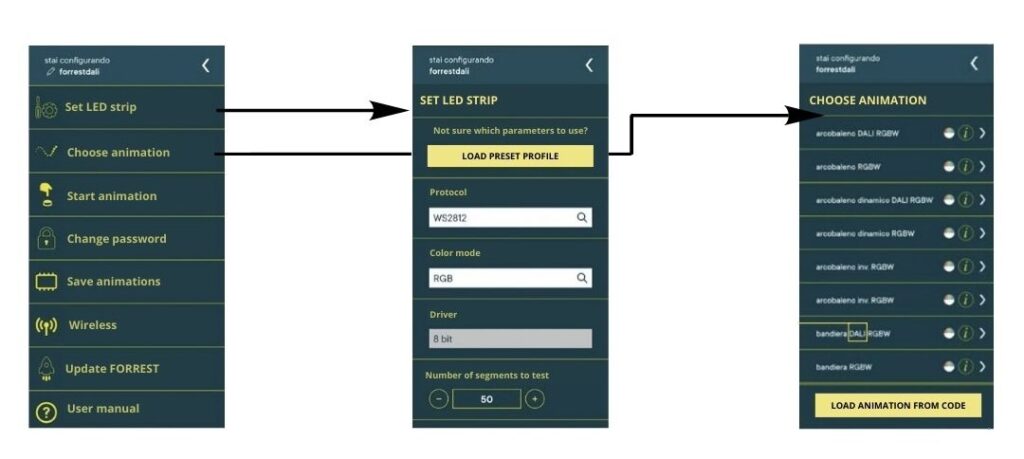

Configuration via APP and BLE

With the NewlabForrest APP, configuration is immediate and intuitive:

  • Scan your Forrest device.
  • Easily set the LED strip parameters by selecting them from a preconfigured and tested list. Alternatively, you can proceed manually: entering incorrect parameters does not cause any damage to the strip or the dimmer.
  • Choose the lighting show from your saved scenes. Through the “virtual button” function, you can preview the animation.
  • Store the animations.
DISCOVER FORREST SHOWS

See how the Forrest dimmer works:
