A flexible dimmer for managing color configurations.
Projects often evolve, and so do LED choices and color channel setups. A flexible dimmer keeps your system flexible and consistent.
The 4-channel PWM dimmer L806MA02T4A01 is engineered for advanced control of constant-voltage LED strips and is ideal for Tunable White, RGB, and RGBW applications. It enables precise adjustment of light intensity and accurate management of color temperature changes.
A solution that allows managing different color configurations with a single device, providing reliability, high-quality light, and direct setup through the OIKOS App.
Multiple Control Modes
The dimmer L806MA02T4A01 combines all the main control modes used in professional lighting systems into a single device.
Its compatibility with DALI2 DT6 and DT8, DMX512A-RDM, PUSH, 0-10V / 1-10V active and passive, phase-cut dimming, and Bluetooth BLE allows you to control different applications using a single control device.
Power and Flexibility
With 4 PWM channels at 8A and the ability to operate up to 32A in single-channel mode, the L806MA02T4A01 is ideal for driving high-power LED strips and demanding loads, even on long cable runs.
Support for single-color, Tunable White, RGB, and RGBW configurations makes it suitable for both functional installations and dynamic, scenographic solutions.
Light Quality
The selectable PWM frequency up to 10,000 Hz ensures stable and smooth dimming, an essential requirement for visual comfort and light quality, even in RGBW and Tunable White applications.
A feature that makes the device suitable for environments where color accuracy and consistent lighting are required, such as commercial spaces, homes, and workplaces.
Smart Control

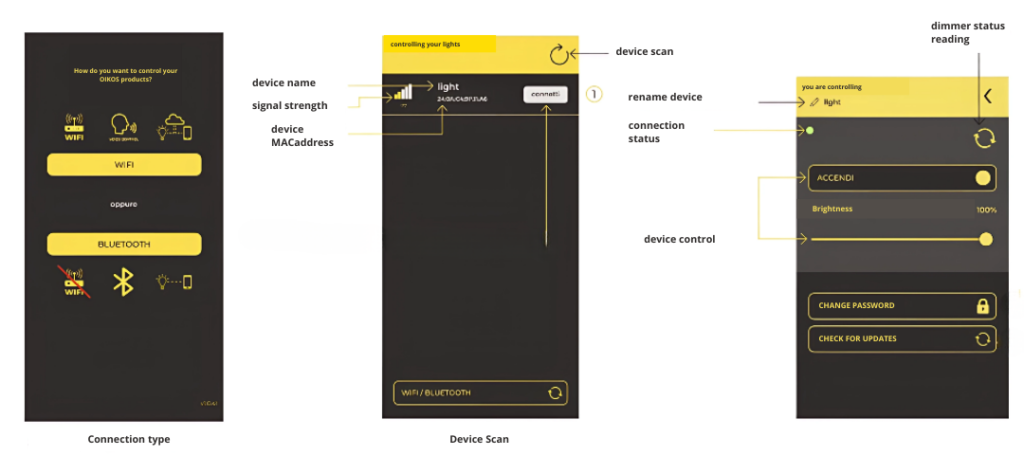

The Bluetooth BLE interface allows direct management through the OIKOS App, making local control of the system and configuration tasks easier.
A feature useful for retrofit applications, during startup, or in installations without centralized supervision systems.
Caratteristiche tecniche
Power Supply Range
8–53 V DC
Installation
Compact DIN rail format
Control Systems
DALI2 DT6 / DT8, DMX512A-RDM
Local Control
PUSH, 0-10V / 1-10V active and passive, phase-cut
Wireless Interface
Bluetooth BLE
PWM Outputs
4 channels / single-channel mode / Tunable White / RGB / RGBW
PWM Frequency
390 Hz – 3000 Hz – 10,000 Hz
Supported Current
8A per channel – up to 32A in single-channel mode (1536W at 48V)
LED Indicators
Power and configuration status
Built-in Protections
Reverse polarity, short circuit, open circuit, overvoltage
CONCRETE BENEFITS
In lighting projects, the challenge is not only choosing the right LED sources but also efficiently managing different configurations, reducing design and installation time.
Necto Group offers its clients the L806MA02T4A01 dimmer, enabling them to:
- Flexible color channel configuration: Tunable White, RGB, and RGBW
- Handling complex loads: supports high-power LED strips and long wiring runs.
- Stable lighting: ensures smooth, flicker-free dimming in professional environments.
- Instant control: allows local and smartphone management for quick setup.
- Long-term reliability: designed for continuous use with built-in protections and thermal control.
