FOUR POWER RATINGS,
ONE FLEXIBLE SOLUTION
The ComfortLine range offers four power levels — 45 W, 80 W, 150 W, and 250 W — while maintaining a shared platform based on 24 VDC output and DALI2/PUSH control.
The availability of multiple power options allows you to select the driver according to the LED load and project specifications, avoiding a “one-size-fits-all” approach for different applications.
COMPACT AND EASY TO INTEGRATE

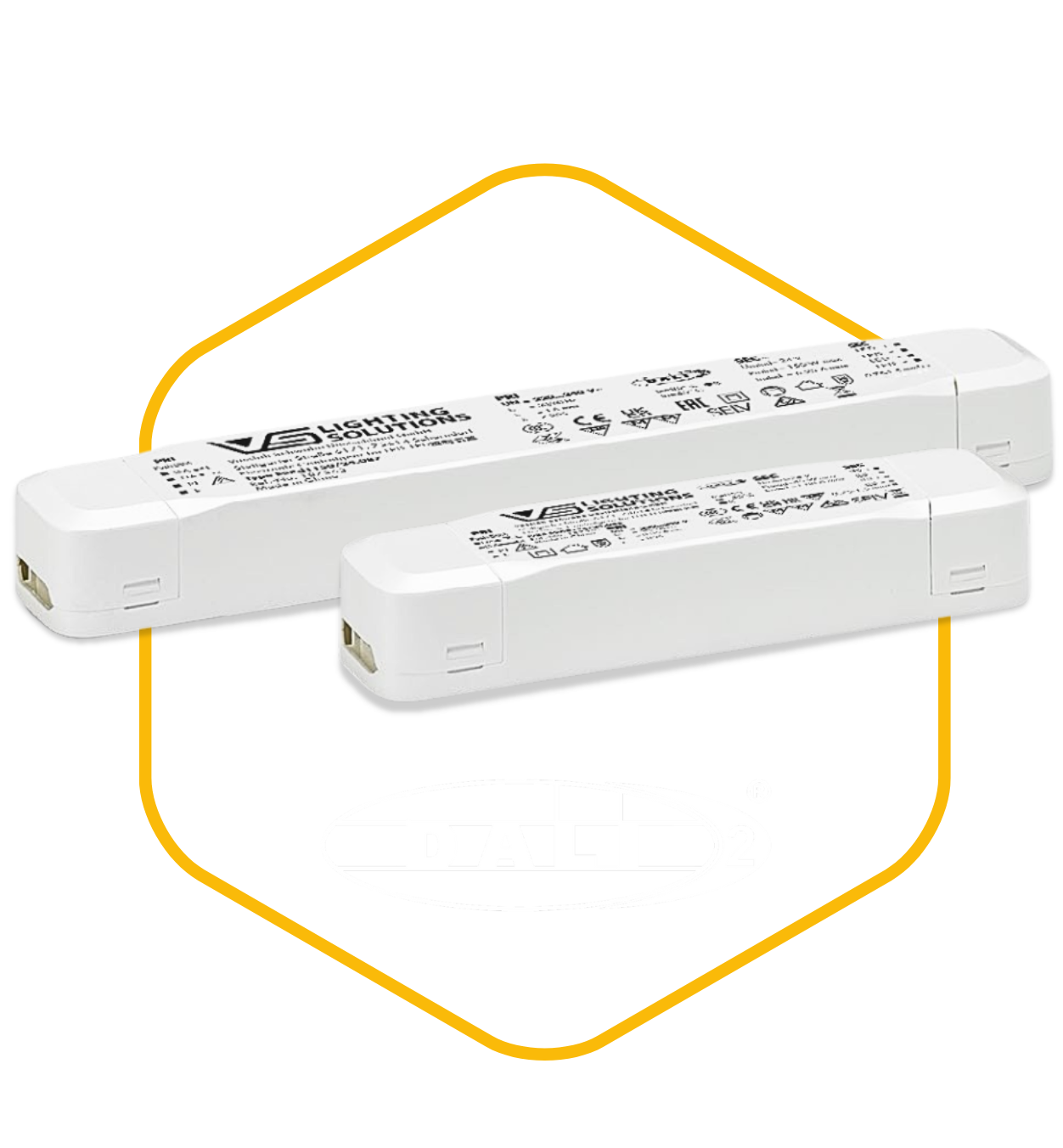

ComfortLine 24V L DALI2 drivers feature a linear and compact form factor, engineered to simplify integration into lighting systems.
The height is limited to 31 mm, while the length varies based on the power output:
- 45 W: 187 × 45 × 31 mm
- 80 W: 280 × 45 × 31 mm
- 150 W: 350 × 45 × 31 mm
- 250 W: 431 × 45 × 31 mm
This configuration allows you to optimize available space within the application.
DIMMING
LIGHTING CONTROL WITH DALI2 AND PUSH
One of the key strengths of this range is the ability to manage light dimming via DALI2 or PUSH-DIM control.
DALI2 technology allows drivers to be integrated into digitally controlled lighting systems, while PUSH control enables simple operation via a standard push-button.
The range is therefore ideal for projects where powering the LED is not enough, and controlling and adjusting light intensity is also required.
Immediate benefit
A single driver for both power supply and dimming management of the LED system.
QUALITY, RELIABILITY, AND PROTECTION
PWM TECHNOLOGY AND RIPPLE ≤ 1%
The ComfortLine range utilizes a 24 VDC PWM output and features a ripple rate ≤1%.
These features contribute to a stable power supply for the LED system and high light quality suitable for professional applications where visual comfort is a essential requirement.
DESIGNED FOR RELIABLE OPERATION
ComfortLine drivers are built with electronic protection systems against major abnormal operating conditions, including:
- Overload;
- Short circuit;
- Overvoltage.
The range also features Class II, SELV, and IP20 protection ratings.
Expected lifetime reaches up to 50,000 hours under manufacturer-specified conditions, backed by a 5-year warranty in the official documentation.
APPLICATIONS
APPLICATIONS
WHERE TO USE COMFORTLINE DRIVERS?
The ComfortLine range is designed for 24 V LED lighting systems across various application environments.
- OFFICES
For lighting systems requiring brightness control and integration with management systems.
- RETAIL AND COMMERCIAL SPACES
To adjust light intensity based on space requirements and visual experience.
- RESIDENTIAL
For dimmable LED systems requiring precise control and visual comfort.
- PROFESSIONAL LED SYSTEMS
For applications where compactness, 24 V power supply, and dimming capability are key design requirements.
TECHNICAL SPECIFICATIONS
| FEATURE | SPECIFICATION |
|---|---|
| Input Voltage | 220–240 V AC, 50–60 Hz |
| Output Voltage | 24 V DC |
| Rated Power | 45 W / 80 W / 150 W / 250 W |
| Control | DALI2 / PUSH |
| Output Technology | PWM |
| Ripple | ≤ 1% |
| Power Factor | > 0.95 |
| Protection Rating | IP20 |
| Insulation Class | Class II |
| Safety Standard | SELV |
| Expected Lifetime | Up to 50,000 hours |
| Warranty | 5 years |
WHY CHOOSE COMFORTLINE
MORE CONTROL, LESS SPACE
The ComfortLine 24V L DALI2 range combines in a single solution:
- 24 VDC
Power supply for constant voltage LED systems. - DALI2 / PUSH
Two control modes for dimming management. - 45–250 W
Four power options to suit different application requirements. - COMPACT FORM FACTOR
Slim profile with a height of just 31 mm. - RIPPLE ≤ 1%
For stable power output and high-quality light. - SELV + CLASS II
Engineered with specific safety compliance standards.
